The Global Electrical Puzzle
There are currently 15 types of domestic electrical outlet plugs in use worldwide, each designated by a letter from the US Department of Commerce International Trade Administration, starting with A and progressing through the alphabet. This seemingly simple classification system masks a complex reality where travelers must navigate not only different plug shapes but also varying voltages, frequencies, and safety standards.
The lack of a universal standard might seem like an inconvenience to modern travelers, but it reflects over a century of independent electrical infrastructure development across nations, each prioritizing different aspects of safety, efficiency, and practicality based on their unique circumstances and historical contexts.
Understanding the Classification System
The system of identifying plug and socket types using single letters comes from the IEC World Plugs, which defines these letters in terms of general descriptions without making reference to specific standards. Where a plug does not have a specific assigned letter code, it may be defined by the style sheet number listed in the IEC TR 60083 standard.
Types A and C are the most frequently used electric plugs worldwide, with Type A dominating North America and parts of Asia, while Type C serves as the standard "Europlug" across much of Europe and beyond.
Type G: The British Standard (United Kingdom, Ireland, Malaysia, Singapore)
Design and Specifications
The Type G plug is one of the most distinctive and recognizable power plugs in the world, featuring three rectangular pins arranged in a triangular pattern. This design is mandated by British Standard BS 1363 and is commonly used throughout the United Kingdom, Ireland, Cyprus, Malta, Malaysia, Singapore, and Hong Kong.
Technical Characteristics
Pin Configuration: Type G features two horizontal rectangular pins for live and neutral connections, with a longer vertical rectangular pin for grounding positioned above them. The outer pins measure 4 mm wide by 6.35 mm high and 17.7 mm long, while the earth pin is larger at 7.93 mm wide, 4 mm high, and 22.73 mm long.
Ratings: Type G plugs are rated at 13 amps and operate at 220-240 volts.
Safety Features: British sockets incorporate shutters on the live and neutral contacts that prevent the introduction of foreign objects. The longer earth pin must be inserted first, which opens these shutters to allow access to the power contacts.
Fused Plug System: A unique feature of Type G plugs is the requirement for an internal cartridge fuse. Small appliances typically use a 3-amp fuse, while heavy-duty appliances use a 13-amp fuse. This fusing system exists because UK homes use ring circuits protected by 32-amp circuit breakers, making individual plug fuses necessary for appliance protection.
Switches: Type G wall sockets almost always include switches for extra safety, allowing users to cut power without unplugging the device.
Historical Context
Type G plugs and sockets started appearing in 1946, with the standard first published in 1947. By the end of the 1950s, it had replaced earlier Type D outlets in new UK installations, and by the 1960s, most earlier installations had been rewired to the new standard.
Type N: The Brazilian Standard (Brazil)
Design and Specifications
Type N is a relatively modern plug standard, designed specifically for Brazil and officially adopted in 2011. It features two round pins with a grounding pin, arranged to accommodate both lower and higher power applications.
Technical Characteristics
Variations: There are two variations of the Type N plug—one rated at 10 amps and one at 20 amps. The 10-amp version has round pins that are 4 mm thick, while the 20-amp version features pins 4.8 mm in diameter, both with a grounding pin.
Compatibility: The Type N socket was designed to work with Type C plugs as well, providing backward compatibility with the widely used Europlug.
Voltage Considerations: Brazil is one of the few countries that uses two types of voltage. While most states use 127 volts, some use 220 volts. This variation makes it essential to verify local voltage before plugging in appliances, as incorrect voltage can destroy electrical devices. Many appliances sold in Brazil are dual voltage to address this issue.
Historical Context
The Type N plug system was developed in the early 2000s to create a standardized system for Brazil, which previously used multiple incompatible plug types. The new standard aimed to improve safety and reduce confusion in the Brazilian electrical market.
Type H: The Israeli Standard (Israel)
Design and Specifications
Type H is used almost exclusively in Israel, as well as in the West Bank and the Gaza Strip. It features a unique three-pin configuration arranged in a triangular pattern with round pins.
Technical Characteristics
Pin Configuration: The plug has three round pins forming a triangular shape, distinctly different from other three-pin systems.
Ratings: Type H plugs are rated at 16 amps and operate at 230 volts at 50 Hz.
Safety Concerns: Type H plugs contain no insulation on the pins, which can potentially lead to electrocution hazards if the plug is partially inserted or withdrawn.
Compatibility: Type H sockets can accept Type C plugs with some limitations, though Type C plugs are not designed to use the grounding feature of Type H sockets.
Type K: The Danish Standard (Denmark, Greenland)
Design and Specifications
Type K is the standard plug used in Denmark and Greenland, featuring a design similar to Type F (Schuko) but with a distinct grounding system.
Technical Characteristics
Pin Configuration: Type K features two round pins as well as a grounding pin. The key difference from Type F is that Type K uses a grounding pin instead of grounding clips.
Ratings: Type K plugs are rated at 16 amps and operate at 220-240 volts.
Compatibility: Type C plugs (Europlugs) are perfectly compatible with Type K sockets. Since 2008, French-style Type E sockets may also be installed in Denmark, and since 2011, Type F (Schuko) sockets are permitted as well, though Type K remains the most common socket in Danish homes.
Safety Considerations: Due to the lack of grounding when using hybrid European plugs in Type K sockets, there have been warnings that such connections can give electric shocks ranging from noticeable to potentially life-threatening.
Type I: The Australasian Standard (Australia, New Zealand, China, Argentina)
Design and Specifications
Type I is characterized by three pins (or two for unearthed appliances) arranged in a distinctive V-shaped pattern. It is used primarily in Australia, New Zealand, Papua New Guinea, China, and Argentina.
Technical Characteristics
Pin Configuration: The plug features two flat prongs arranged in a V-shape at an angle, with a flat vertical earth pin positioned below (in Australia) or above (in China) the power pins.
Variations: There is also an ungrounded version featuring only the two flat V-shaped prongs.
Ratings: Type I plugs are typically rated at 10 to 20 amps and operate at 220-240 volts.
Regional Differences: The Argentinian version has reversed polarity compared to Chinese and Australasian versions. In China, the earth contact is typically above the power pins, while in Australia and New Zealand it is positioned below them.
Safety Features: Australasian plugs have insulating sleeves around the upper part of their power pins for added safety, though this feature is not present on most Chinese plugs.
Chinese Standards: China also uses American/Japanese Type A (NEMA 1-15) sockets and plugs for Class II appliances. Some Chinese sockets include physical lockouts preventing access to terminals unless an earth pin is entered first.
Type F: The Schuko Standard (Germany, Europe)
Design and Specifications
Type F, commonly known as "Schuko" (from the German "Schutzkontakt" meaning protective contact), is one of the most widely used plug types in Europe.
Technical Characteristics
Pin Configuration: The plug features two 4.8 mm round pins spaced 19 mm apart, similar to Type E but with a key difference in the grounding system.
Grounding: Instead of a grounding pin like Type E, Type F uses two earth clips on the sides of the plug that make contact with corresponding clips in the socket.
Ratings: Type F plugs are rated at 16 amps and operate at 230 volts.
Geographic Use: Type F is used in Germany, Austria, the Netherlands, Spain, and many other countries throughout Europe and beyond.
Compatibility: Type C plugs (Europlugs) are compatible with Type F sockets. The hybrid CEE 7/7 plug was developed to work with both Type E and Type F sockets, featuring grounding clips for Type F compatibility and a female contact to accept the grounding pin of Type E sockets.
Type E: The French Standard (France, Belgium, Poland)
Design and Specifications
Type E is a French-origin plug widely used in France, Belgium, Poland, Slovakia, Tunisia, and several other countries.
Technical Characteristics
Pin Configuration: The plug has two 4.8 mm round pins spaced 19 mm apart, with a hole to accommodate the socket's male earthing pin.
Grounding: Unlike Type F which uses side clips, Type E sockets have a male earthing pin that extends from the socket itself, which the plug must accommodate.
Ratings: Type E plugs are rated at 16 amps and operate at 230 volts.
Shape: The Type E plug has a rounded shape, and Type E sockets feature a round recess.
Compatibility: Type C plugs can be used in Type E sockets, though without grounding connection.
Type C: The Europlug (Continental Europe)
Design and Specifications
Type C, commonly known as the Europlug, is perhaps the most widely compatible plug design in the world, serving as a universal solution for low-power appliances throughout Europe and beyond.
Technical Characteristics
Pin Configuration: The plug features two round pins that are 4.0 to 4.8 mm in diameter, spaced 19 mm apart on center.
Ratings: Type C plugs are generally limited to appliances that require 2.5 amps or less.
Ungrounded Design: Type C is an ungrounded, two-wire plug designed for Class II appliances that do not require an earth connection.
Universal Compatibility: Type C plugs fit into any socket that accepts 4.0-4.8 mm round contacts on 19 mm centers, making them compatible with Types E, F, J, K, and N sockets.
Geographic Use: Used throughout Europe with the exception of the United Kingdom, Ireland, Cyprus, and Malta.
Safety Evolution: Type C sockets have become illegal in many jurisdictions due to safety concerns about their ungrounded design. However, the Type C plug itself remains widely used because it can be inserted into the grounded socket types that have replaced Type C sockets.
Type J: The Swiss Standard (Switzerland, Liechtenstein)
Design and Specifications
Type J is used almost exclusively in Switzerland and Liechtenstein, featuring a unique three-pin configuration.
Technical Characteristics
Pin Configuration: The plug has two round pins plus a grounding pin offset from the center line.
Ratings: Type J plugs are rated at 10 amps, with a 16-amp variant featuring rectangular pins.
Distinctive Features: Although Type J resembles the Brazilian Type N plug, they are incompatible because the earth pin is positioned differently—farther from the center line in Type J than in Type N.
Compatibility: Type C plugs are perfectly compatible with Type J sockets.
Voltage: Operates at 220-240 volts.
Type L: The Italian Standard (Italy)
Design and Specifications
Type L is the standard plug used in Italy and features a unique three-pin inline configuration.
Technical Characteristics
Variations: There are two versions of Type L—one rated at 10 amps and one at 16 amps, each with different pin dimensions.
10-Amp Version: Features two round pins that are 4 mm thick, spaced 5.5 mm apart, with a grounding pin positioned centrally in line with the power pins.
16-Amp Version: Features larger pins with greater spacing for higher current capacity.
Voltage: Operates at 220-240 volts.
Compatibility: Some Type L sockets can accommodate Type C plugs, though this depends on the specific socket design.
Type B: North American Grounded Standard (USA, Canada, Mexico, Japan)
Design and Specifications
Type B is the grounded version of the North American plug standard, adding a safety ground pin to the basic Type A design.
Technical Characteristics
Pin Configuration: Features two flat parallel pins for live and neutral connections, plus a round or U-shaped grounding pin positioned below them.
Ratings: Type B plugs are rated at 15 amps at 125 volts (standard outlets) or up to 20 amps for specific applications.
Ground Pin Function: The earth pin is longer than the other two pins, ensuring the device is grounded before power is connected—a critical safety feature.
Regional Variations: American and Japanese versions vary slightly in implementation, though both follow the same basic design.
Standards: Corresponds to NEMA 5-15 in North American electrical standards.
Compatibility: Type B sockets can accept both Type B plugs and Type A plugs (which lack the grounding pin).
Type A: North American Ungrounded Standard (USA, Canada, Mexico, Japan)
Design and Specifications
Type A is one of the oldest standardized plug designs still in widespread use, serving as the foundation for North American electrical systems.
Technical Characteristics
Pin Configuration: Features two flat parallel pins without a grounding pin, making it suitable only for Class II appliances that don't require earthing.
Polarization: American Type A plugs are polarized—the neutral pin is wider than the live pin. Japanese Type A plugs have both pins the same size, which means Japanese plugs can be used in US sockets, but US polarized plugs often cannot be used in Japanese sockets.
Pin Features: The pins often have holes near the tip that fit into bumps on socket contact wipers, providing better contact and preventing the plug from slipping out. Some modern sockets use spring-action blades instead, making the holes obsolete.
Ratings: Type A plugs are rated at 15 amps at 125 volts.
Voltage Note: Japan operates at 100 volts rather than the 110-120 volts common in North America, which can affect the operation of some North American devices in Japan.
Frequency Variation: Japan uses different frequencies in different regions—50 Hz in Eastern Japan (Tokyo area) and 60 Hz in Western Japan (Osaka area).
Standards: Corresponds to NEMA 1-15 in North American electrical standards.
Understanding Voltage and Frequency Differences
Global Voltage Standards
The world is divided into two major voltage camps:
220-240 Volt Region: Most of the world, including Europe, Asia, Africa, Australia, and South America, operates on voltage between 220 and 240 volts. This higher voltage allows for more efficient power transmission and supports high-power appliances with smaller, lighter wiring.
100-127 Volt Region: North America, parts of Central America, and Japan operate on lower voltages between 100 and 127 volts. This system prioritizes safety through lower voltage, though it requires thicker wiring and larger transformers for the same power delivery.
Frequency Standards
50 Hz: Used in most of the world, including Europe, Asia, Africa, and Australia.
60 Hz: Used in North and Central America, and parts of South America and Asia.
The frequency difference affects motor-driven appliances like clocks, record players, and some audio equipment. Most modern electronic devices with switching power supplies can handle both frequencies, but older equipment may not function properly on the wrong frequency.
The Voltage Conversion Challenge
Physical compatibility between plug and socket does not ensure electrical compatibility. A device designed for 120 volts plugged into a 240-volt outlet can be destroyed or even catch fire. Conversely, a 240-volt device on 120-volt power will operate inefficiently or not at all.
Modern smartphones, laptops, and many electronics include dual-voltage power supplies (typically labeled 100-240V) that work anywhere in the world with just a physical adapter. However, high-power appliances like hair dryers, space heaters, and kitchen appliances usually require voltage converters or region-specific models.
Travel Adapters vs. Voltage Converters
Travel Adapters
Travel adapters provide physical compatibility, allowing your plug to fit into a foreign socket. They do not change voltage or frequency. Use adapters only with devices designed for the destination's voltage, or with dual-voltage devices.
Voltage Converters
Voltage converters transform electrical power from one voltage to another. They are necessary when using single-voltage appliances in regions with different voltage standards. However, converters can be heavy, expensive, and may not work well with all appliances, particularly those with motors or heating elements.
Universal Travel Adapters
Universal travel adapters combine multiple plug configurations in a single device, allowing travelers to use their electronics in numerous countries. These typically work worldwide except in countries with unique standards like South Africa (which also uses Type M sockets with larger pins).
Special Considerations and Regional Variations
Multi-Standard Countries
Many countries use more than one plug type due to historical transitions, regional variations, or accommodation of imported equipment. For example:
India: Uses Types C, D, and M South Africa: Uses Types C, D, M, and N Israel: Uses Types C and H Brazil: Previously used multiple types before standardizing on Type N
Industrial and High-Power Applications
The plug types discussed here serve domestic and light commercial applications. Industrial facilities and high-power applications often use completely different connector systems rated for higher currents and voltages, including three-phase power connections.
Obsolete Standards
Several plug types have been phased out or are being replaced:
Type D: While still used in India and parts of Africa, it's considered somewhat outdated.
Type M: A larger version of Type D for higher current applications, primarily used in South Africa.
Type C Sockets: While Type C plugs remain widely used, ungrounded Type C sockets are being phased out in favor of grounded alternatives.
Safety Considerations
Grounding Importance
Grounding (earthing) provides a critical safety function by creating a path for electrical current in case of equipment failure, preventing electric shock. Always use grounded plugs and outlets when available, especially for metal-cased appliances and high-power equipment.
Overload Prevention
Never exceed the rated capacity of a plug or socket. Using high-power appliances on circuits designed for lower currents can cause overheating, fire, or circuit breaker trips.
Water and Electricity
Electrical installations near water sources require special protection. Many countries mandate ground fault circuit interrupters (GFCIs) or residual current devices (RCDs) in bathrooms, kitchens, and outdoor locations.
DIY Modifications
Never modify plugs or force incompatible plugs into sockets. Such adaptations bypass safety features and can lead to electric shock, fire, or equipment damage.
Universal Sockets
Some outlets marketed as "universal" accept multiple plug types. However, these often fail to meet safety standards and may not provide proper grounding for all plug types. Avoid using universal sockets where standard, approved options are available.
The Quest for Standardization
Why No Universal Standard?
The lack of a single global electrical standard results from several factors:
Historical Development: Different countries developed their electrical infrastructure independently at different times, each establishing standards based on contemporary knowledge and priorities.
Infrastructure Investment: Replacing an entire nation's electrical infrastructure is prohibitively expensive. The installed base of billions of outlets and appliances represents enormous economic value that cannot be easily discarded.
Safety Philosophy: Different countries prioritize different aspects of electrical safety, leading to varied design approaches. The UK's fused-plug system, for instance, reflects specific safety considerations from their ring-circuit electrical distribution.
Technical Preferences: Engineers in different regions developed different solutions to the same problems, and all these solutions work effectively within their respective systems.
European Harmonization Efforts
Europe has made more progress toward standardization than any other region. Type C plugs work throughout most of continental Europe, and the compatible Types E and F serve much of the European Union. However, the UK, Ireland, Cyprus, and Malta continue using Type G, and Switzerland maintains Type J.
IEC 60906-1 Standard
The International Electrotechnical Commission developed IEC 60906-1, a proposed universal plug and socket standard featuring two round pins and a grounding pin. Brazil adopted this standard as Type N, but broader international adoption has been limited due to the enormous infrastructure investment required for transition.
Practical Advice for Travelers and International Professionals
Research Destination Requirements
Before traveling, research the specific plug types, voltage, and frequency used in your destination countries. Reliable sources include government travel advisories, electrical standards organizations, and comprehensive travel electrical guides.
Invest in Quality Adapters
Purchase high-quality travel adapters from reputable manufacturers. Cheap adapters may fit poorly, overheat, or lack proper electrical contact, potentially damaging devices or creating safety hazards.
Check Device Compatibility
Examine the labels on your electronic devices. Look for voltage range (e.g., "INPUT: 100-240V") and frequency compatibility. Dual-voltage devices only need physical adapters, while single-voltage devices require converters.
Consider Device Replacement
For frequent international travelers, purchasing dual-voltage versions of regularly used appliances (particularly hair dryers and other heating appliances) proves more practical than carrying heavy voltage converters.
USB and Modern Solutions
Modern USB charging standards and devices reduce international compatibility concerns. USB chargers are increasingly universal, though you may still need plug adapters for the wall connection.
Power Strips and Surge Protectors
When traveling, bring a power strip from your home country. This allows you to use a single adapter for multiple devices and provides familiar outlets for all your equipment.
The Future of Global Electrical Standards
Wireless Power
Wireless charging technology and battery-powered devices reduce dependence on wall outlets, potentially diminishing the importance of plug compatibility issues over time.
USB Power Delivery
The USB Power Delivery standard can provide up to 240 watts through USB-C connections, potentially replacing many traditional wall outlets for consumer electronics.
Smart Grid Integration
Future electrical systems may incorporate more intelligence and adaptability, potentially facilitating easier international compatibility through smart adapters and programmable power delivery systems.
Slow Evolution
Despite technological advances, physical plug standards will likely persist for decades due to the enormous installed base and the fundamental need for high-power connections that wireless and USB systems cannot address.
Conclusion
The diversity of electrical plug and socket standards worldwide reflects over a century of independent technological development, varying safety philosophies, and the practical reality that transitioning infrastructure is enormously expensive. While this diversity creates challenges for international travelers and global product manufacturers, each system represents a functional solution to electrical power distribution within its respective region.
Understanding these different standards goes beyond mere curiosity—it's essential knowledge for anyone engaging with our interconnected world. Whether you're planning international travel, developing products for global markets, specifying equipment for international projects, or simply wanting to understand the technology that powers our daily lives, knowledge of world power socket standards provides valuable insight into how different societies approach the fundamental challenge of safely delivering electrical power to homes and businesses.

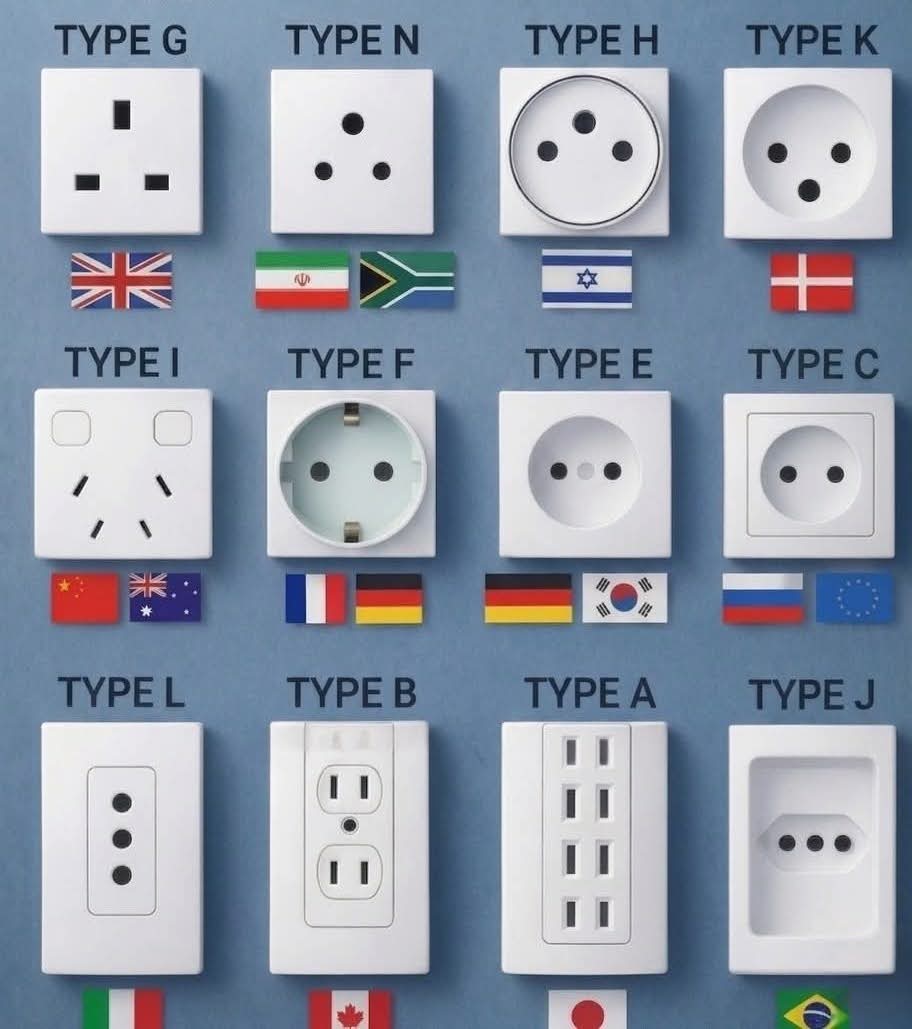

The twelve main plug types shown—Type G (United Kingdom), Type N (Brazil), Type H (Israel), Type K (Denmark), Type I (Australia/China), Type F (Germany/Europe), Type E (France), Type C (Europlug), Type J (Switzerland), Type L (Italy), Type B (North America grounded), and Type A (North America ungrounded)—represent the primary systems, though variations and additional types exist globally.
As we move forward, while wireless power and USB standards may reduce some compatibility concerns, the fundamental plug and socket infrastructure will remain essential for high-power applications and will continue to reflect each nation's unique approach to electrical safety and power distribution. Understanding this diversity not only helps us navigate practical challenges but also reveals the fascinating story of how humanity has harnessed and distributed one of its most essential technological resources—electricity.
